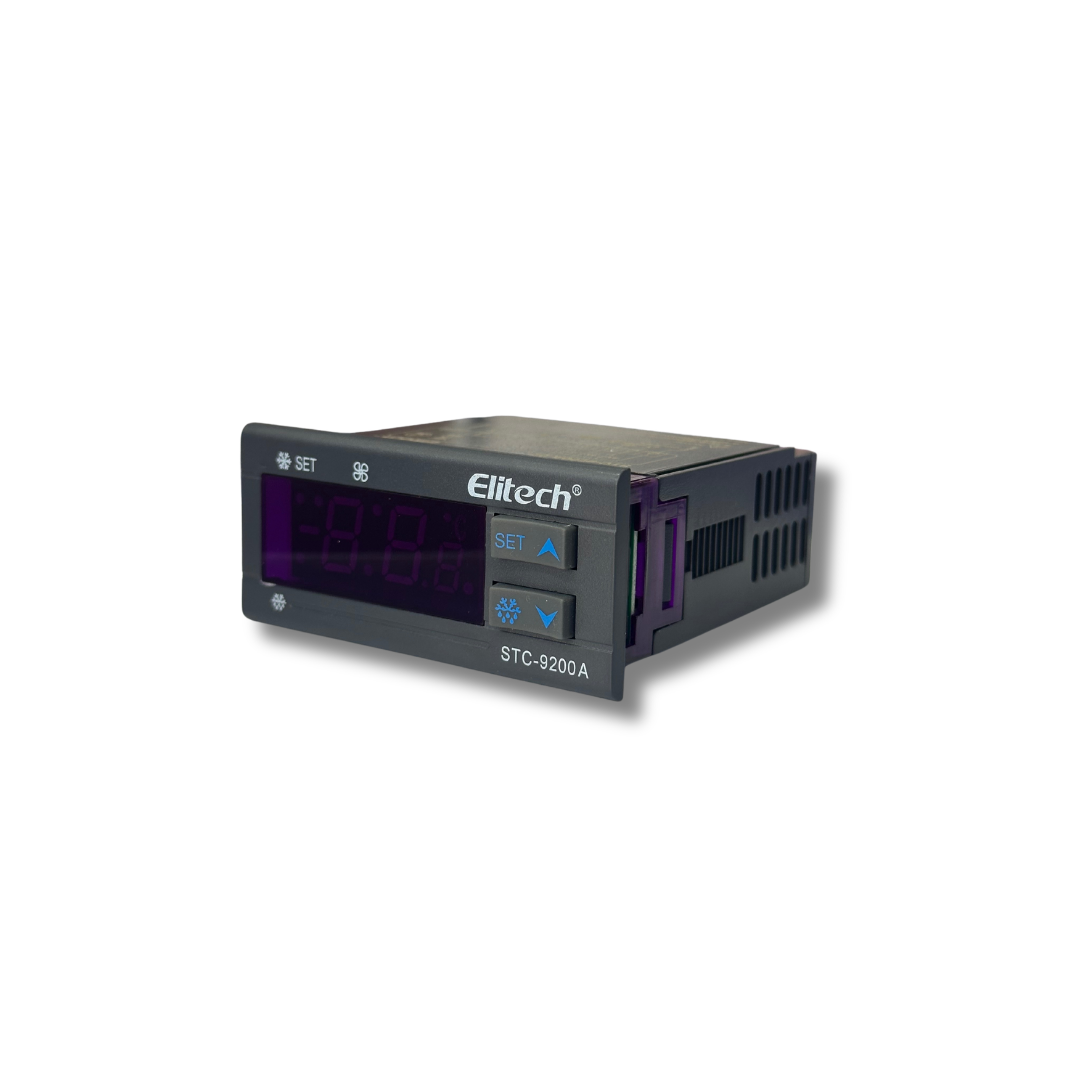

STC-9200A Temperature Controller

About the Product

Elitech STC-9200A is a universal-type temperature controller. It includes two channels of temperature sensors at maximum for adjusting cabinet temperature and controlling defrost. Support defrost sensor, defrost relay, fan relay and copy card.

Specification
Mounting size: 71 * 29 (mm)
Product size: 78.5*34.5*82 (mm)

Technical parameters
1) Temperature measuring range: -50°C~99°C or -50°F~99°F (Only when sensor calibration value is set to 0.)
2) Temperature resolution: 0.1°C/°F (cabinet sensor), 1°C/°F (evaporator sensor)
3) Temperature accuracy: 1°C (-40°~50°C); 2°C(50°C~70°C); +3°C(others); or 2°F(-40°F~99°F); +6°F (others)
4) Temperature control range: -50°C/°F~99°C/°F
5) Power supply: 220+10% (VAC)› 50/SOHZ;
6) Overall power consumption: <3w
7) Output capacity:
Refrigeration: 8A/Defrost: 8A/ Fan: 8A
8) Ambient temperature: 0°C~55°C
9) Storage temperature: -25°C~75°C, relative humidity: 20%~85% (non-condensing)

Brand: Elitech
